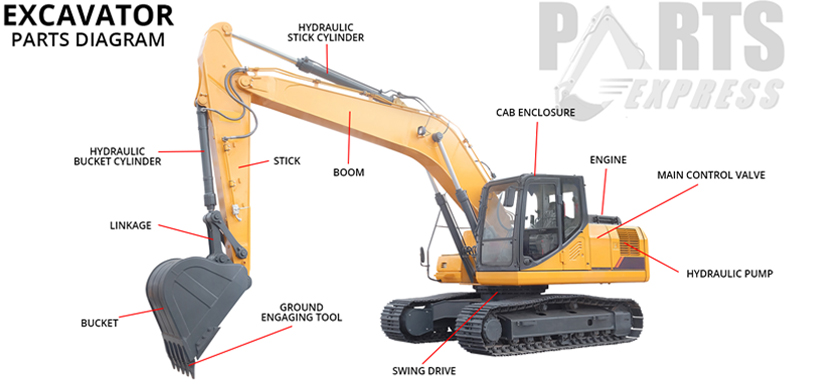

Excavator Parts in Utah - Excavators are instrumental for completing building projects on time and on budget. These machines are capable of moving heavy dirt loads much faster in comparison to manual labor. This industrial equipment is used in many industries including road work, bridge building, landscaping, construction and architecture. While tracked models are sometimes known as trackhoes, excavators go by many names including mechanical shovels, diggers and 360-degree excavators. There are many applications for excavators and their attachments including forestry, snow removal with snowplow attachments and a snowblower, material handling, river dredging, construction, brush cutting with a hydraulic saw and mower attachments, digging trenches, holes and foundations, mulching for forestry, working alongside a pile driver for driving piles, grading and landscaping, regular and open-pit mining, demolition work with hydraulic claw attachments and a breaker, drilling footings and for rock blasting with an auger attachment or hydraulic drill. An excavator is a type of heavy construction equipment that is comprised of specific parts. The stick or the dipper, cab, boom and bucket are located on top of the house which is a rotating platform. The house is situated on top of an undercarriage that has tracks or wheels. Excavators have evolved from steam shovels of yesteryear. Today’s hydraulic excavating models use hydraulic fluid to complete all functions and movement. The hydraulic cylinders feature linear actuation making them different from excavators that are cable-operated, relying on steel ropes and winches instead. Excavator Models Hydraulic excavators come in a variety of different models and sizes. Tiny and compact models weigh approximately 2k lbs. while the largest models weigh in around 2m lbs. Modern hydraulic excavators rely on engine power to operate three hydraulic pumps as opposed to mechanical drivetrain operations. Two pumps deliver high-pressure oil for the accessories, swing motor, track motors and arms. A low-pressure third pump delivers power to pilot the spool valves. This design offers less required physical effort for operating the controls. The three excavator pumps typically consist of a gear pump and two variable displacement piston pumps. These three pumps can be found in the excavator in numerous configurations depending on different manufacturer models. The House and the Undercarriage The two main aspects of the machine are made by the undercarriage and the house. The final drives with a hydraulic motor and subsequent gears to individual tracks the blade, track frame and tracks are considered undercarriage components. The house consists of the operator cab, the counterweight, hydraulic oil tanks, fuel and the engine. The house and the undercarriage are connected via a pin. High-pressure oils are supplied to the tracks on the hydraulic motor via a pin axis found on the hydraulic swivel. This setup enables the machine to traverse 360 degrees freely. The house is attached to the main boom and various configurations are available. The most common type of booms are the mono booms. This kind of boom offers zero movement other than up and down motions A knuckle boom is another option which allows it to move right and left in line with the machine. Typically an option on compact excavators, the booms’ base has a hinge option that enables it to pivot one-hundred and eighty degrees independently to the house. There are triple articulated booms available on specific machines. A dipper arm is attached to the end of the boom. This apparatus provides the required digging force to drag the bucket through the ground. The stick length is optional depending on if reach or breakout power is needed. Longer stick models are utilized for reach applications, while shorter sticks are used for breakout power situations. At the end of the stick, the bucket is attached. A mud bucket describes a large, wide capacity bucket that has a straight cutting edge used for leveling and cleanup or wherever teeth are not needed. General-purpose bucket designs commonly are used to break up hard ground and difficult rocks, with their side cutters and hardened teeth that are typically smaller and stronger. There are many different buckets of varying sizes for different applications. Numerous attachments can be used for ripping, lifting, cutting, boring, crushing, and more. Prior to the ‘90s, all excavating equipment came with a conventional counterweight that was suspended off of the back of the machine. This design enabled the machine to conquer more digging force and lifting capacity. This design was not ideal for working in confined locations. Today’s machines have been designed with the counterweight to stay in the width of the tracks for a much more user-friendly design. In excavators, there are two main kinds of control configuration to operate the bucket and the boom called the ISO and the SAE. This configuration disperses the top four digging controls between two separate y-x joysticks, providing the operator with simultaneous control over all four movements. Certain excavators have switches to allow the operator to decide on which configuration they want to use during operation. Hydraulic excavator jobs have surpassed bucket and excavation tasks. Many attachments including an auger, a grapple or a breaker have become common hydraulic powered attachments. Some models come with a quick coupler feature to increase efficiency while simplifying the attachment mounting process. Excavators commonly work alongside bulldozers and loaders. The majority of medium and compact sized wheeled models have a dozer blade or a backfill blade. This horizontal blade attaches to the undercarriage. It is used for pushing and leveling material back into a hole. 8 Main Excavator Types There are eight main kinds of excavators including the dragline, long reach, crawler, bucket wheel, backhoe, steam shovel, skid steer and suction. Steam Shovel One of the first kinds of excavators were steam shovels. They utilized steam energy back in the day, while current models rely on diesel or electric motors. Steam shovels are similar to backhoes with the bucket or shovel facing away from the machine instead of facing it. This enables the operator to shove dirt away from the machine instead of pulling earth towards it. Steam shovels are used for digging around objects that may interfere with a typical backhoe. Backhoe One of the most well-known types of excavators is backhoes. This equipment consists of a wheeled track base and large bucket that extends from an arm or boom above the ground. The operator can scoop earth toward the machine as the design has the bucket facing the operator’s cab. These machines come in multiple sizes including compact residential models suitable for backyard applications up to heavy-duty versions used in bridge building and dredging waterways. The more compact units are ideal for accessing smaller spaces and this offers a 200-degree swiveling range for digging close to the machine. Dragline Excavator A dragline excavator resembles a backhoe and includes various cables and lines to facilitate the bucket pulling motion. The dragline design enables operators to obtain a longer reach while digging deeper compared to a traditional backhoe. The boom and cables allow users to work over unstable or wet ground and where a traditional backhoe would not work. Skid Steer Excavators Skid steers are designed with their booms and buckets facing away from the operator. This design allows attachments to reach over the cab as opposed to around it. Skid steers are excellent in narrow areas and can easily negotiate tight turns thanks to this specific design. They are commonly employed for residential projects like site cleaning, digging pools and removing debris within limited space. Suction Excavator The suction excavator looks similar to a dump truck and relies on vacuum technology and a large hose to suck earth and rocks out of the ground. The material is transferred back to the truck. This machine makes it safer to dig around underground pipes and equipment compared to regular backhoes. Crawler Excavators Crawlers run on two tracks and not wheels. They are popular in the mining and construction industries. Also called compact excavators, these machines rely on hydraulic power components to lift heavy soil and debris. The chain wheel configuration allows the machine to traverse down hills with less risk, making them an ideal candidate for hilly locations and tricky terrain. Crawlers are slower in speed compared to other models but offer superior balance, flexibility and stability. Long Reach Excavators The long reach model features longer arm and boom options. They are ideal for hard-to-reach areas. This machine offers over one hundred feet of horizontal reach. These excavators are used in demolition applications and working over a body of water. Numerous attachments can be attached to the arm to complete jobs including shearing, crushing and cutting. Bucket Wheel Excavator These excavators function with a large front wheel with built-in buckets and shovels. As the wheel rotates, rocks and dirt are scooped up in the buckets. Items are transferred onto a conveyor belt that functions as an important part of the machine. The belt transports the material into a bin that depending on the model, could be a part of the machine or separate.
