Loader Parts Utah - Loaders are versatile machines used in a variety of industries. This industrial machine is utilized for moving items and loading materials including snow, feed, woodchips, grain, dirt, demolition debris, asphalt, raw materials, sand and similar items. These machines facilitate a variety of transportation such as moving items into feed-hoppers, rail cars, conveyor belts and dump trucks. There are many types of loaders made for specific applications including skid-steer, payloader, skip loader, front loader, scoop, shovel, bucket loader and wheel-loader models.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. Removable or permanently mounted attachments make up the loader assembly. The bucket portion of the loader can be interchangeable with other tools. Loaders can utilize mounted forks to transport pallets or shipping containers. The machine can also use a clamshell bucket that is hydraulically operated for scraper and light dozer applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
The term front loader is given to sizeable loaders that feature a front bucket. JCBs, backhoe loaders and loader backhoes are the name given to tinier loader tractors that use a small backhoe. These machines are used for digging, laying pipe, clearing debris and loading trucks. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. Loader bucket capacity is in the range of 0.5 cubic meters to thirty-six cubic meters. The capacity of a front loader bucket is higher compared to a backhoe loader.
There are loader models available with tracks or others that feature wheels, depending on which application you are going to use it for. These models are useful in construction applications where rubber wheels would be subsequent to damage from sharp-edged items. Wheels offer better speed and mobility and do not damage paved roads the way tracks do, but tracks offer more traction. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
When transporting lighter items such as small gravel, peat or woodchips, special high-tip buckets are used to simplify bucket emptying when it is at full height. Over the past two decades, front loaders have gained popularity in urban engineering and earthmoving jobs. A variety of loader sizes are on the market to handle numerous jobs.
Sizeable loaders do not have the same automotive steering features unlike regular tractors with a backhoe or front bucket. This type of loader accomplishes steering with a hydraulically actuated pivot point that is found between the front and rear axles, more commonly known as articulated steering. This model allows most of the weight to be carried by the machine thanks to the solid front axle. Articulated steering offers more maneuverability. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. There is higher risk of the machine turning over towards the wide side after the heavy load is raised and the machine is turned to the side.

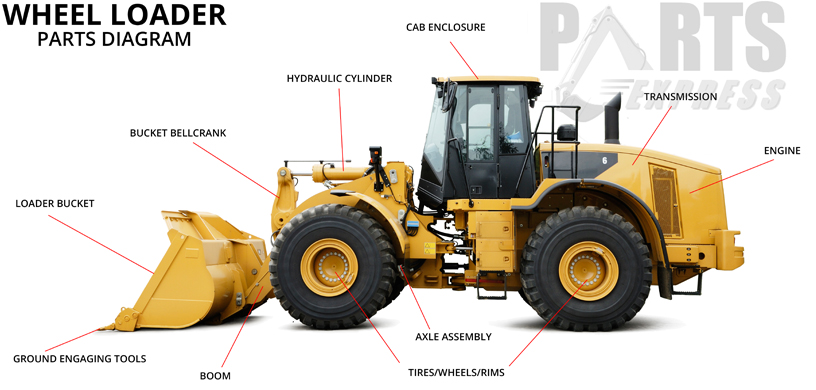

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The engine controls the transmission and the hydraulics and these move the front attachments including a sweeper, forks, a bucket, etc. This equipment is utilized to handle sand, gravel, manure and similar items within model-specific lifting specifications.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. Today’s wheel loader models consist of articulated rear and front wheels featuring the same dimensions.
Armored Wheel Loaders
The armored CAT 966 wheel loaders are common in military applications and used to complete construction missions and combat engineering feats. These machines are often used to build bases, fortify buildings and remove roadblocks. The machine is protected against rocks, stones, Molotov cocktails and gunfire with the addition of armor plating. There are specific police squads who have relied on wheel loaders for military applications to open up routes for police transport. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
A loader addition may accompany tractors that have fifty to two-hundred HP. Tractor loaders have been manufactured to complete many farming activities. These tractor loaders can complete a variety of jobs and are more economical than telehandler equipment. Hydraulic grabs and spikes are some of the common attachments to increase efficiency with bale handling and silage. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
Front-end loaders or FELs are commonly added to compact utility tractors or CUTs and farm tractors. Compact models are small and offer 18 to 50 HP, making them ideal for landscaping and groundskeeping. The traditional dogleg design, curved arm and semi-curved options keep front-end loaders flexible to complete a variety of jobs.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. A tooth bar can be added to the front edge for better digging capacity. The quick attach system or QA and quick coupler allows attachments and buckets, bale spears and pallet forks to be removed easily and attached.
The LHD or load-haul-dump machine is a front end loader that is useful in compact mining conditions. It can use numerous buckets and operate with diesel engines or electric motors.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. It has lift arms that can easily attach to a variety of tools. These machines are generally a four-wheeled vehicle that mechanically synchronizes on each side. Each set of right and left wheels are capable of being driven independently. Usually, the wheels keep a straight, fixed body alignment without separate steering options.
Differential steering is responsible for conducting turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
Low ground friction is converted by specially designed wheels. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This is valuable for applications needing an agile and compact loader. There are some varieties called multi-terrain loaders that utilize tracks as opposed to wheels.
The lift arms in skid loaders are found beside the operator and there are pivot points located behind the shoulder’s of the operator. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. These machines are similar to other front loader models and are capable of transporting items from one location to the next via the bucket for pushing items across the ground or loading them into a trailer.
History of Tracked Loaders
A tracked loader utilizes a chassis with a loader for digging items and loading materials. Three notable design evolutions have made this machine more efficient and versatile. Being able to complete a large variety of tasks, this equipment is a popular add on to many existing fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Tracked loaders were used mainly for moving stockpiled materials into rail cars and loading trucks.
Everything changed with the addition of hydraulic integration from providing power to the loader linkages and increasing overall power. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader consists of a rigid frame and swinging boom. The boom can travel 180 degrees or farther. This equipment is used mostly in railway applications for laying rail. There are many different attachments such as magnets, buckets and forks that can be used. Smaller machines are used for agricultural applications. Swingloaders are useful in limited space applications. Capable of lifting and depositing on all sides, this loader is popular for many different jobs.
