Bulldozers Parts Utah - A popular type of industrial equipment is a bulldozer. They are most often crawler tractors - that is, they operate on a continuous track, rather than wheels - although they can be wheeled tractors. The large metal plate attached to the front of the bulldozer is called the dozer blade. Large volumes can be moved with the dozer blade including dirt, gravel and snow on a variety of landscapes. Big, metal teeth known as “the ripper” are located on the back of the bulldozer, used for breaking up tough, compressed items.
Specifics
The track system on a common bulldozer offers phenomenal maneuvering abilities and excellent traction on uneven ground and unstable or rough surfaces. The special transmission components let the machine function with increased traction. Sinking into unstable environments is prevented as the track width evenly distributes the weight of the machine. Swamp tracks refer to tracks that have increased widths, suitable for specific applications. Dozers are popular within mining applications, land clearing and construction jobs that need strong and stable equipment to transport materials within a variety of environments.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. Mounted directly in front of the articulation joint, the bulldozer blade uses a hydraulic system for operating instead of a mechanical setup.

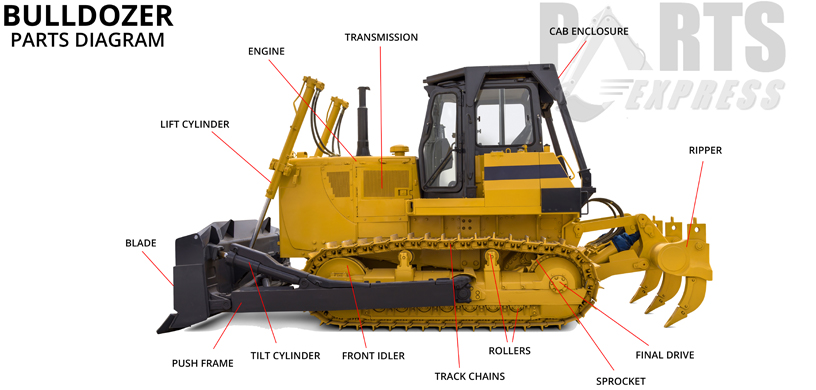

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The dozer blade is a large, metal plate mounted at the front of the bulldozer. The dozer blade is utilized for pushing heavy materials and items including sand, aggregate and gravel. Gravel, dirt, snow and rubbish are commonly pushed into new locations with bulldozers. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal or U blade features large wings on the sides of the tall, curved blade to transport more material. The straight or S blade is much shorter than the U blade and has no wings on the side or lateral curve, making it ideal for earth grading jobs. The SU or semi-U blade combines a shorter blade with slight side wings and less curve compared to the U blade. This blade is commonly used to move large rock and boulder piles.
Dozer blades commonly attach horizontally or at an angle to the tractor. Dozer blade angles are capable of being adjusted via tilt cylinders. Dozer blades can be sharpened to enable cutting items including tree stumps and roots. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. Angledozers are commonly used for snow removal.
A bull blade is a common bulldozer attachment. The bull blade refers to a reinforced middle section of the bulldozer. This feature allows the machine to push another heavy piece of equipment known as a scraper for earthmoving applications.
Military vehicles also utilize dozer blades. Many different military vehicles including artillery tractors, combat engineering vehicles and battle tanks utilize dozer blades. Mounting a dozer blade on a battle tank enables it to push mines and obstacles out of the way or create combat positions by digging shelters. It also helps create a protective barrier against artillery and explosives.
The Dozer Ripper
A dozer ripper is the long, tooth-like tool, known as the shank, on the back of a bulldozer. Dozer rippers are available in multiple or single shank options. The giant ripper is the name given to the single shank design that is often needed for dense applications. The multi-shank options are called multi-shank rippers.
The tip of the shank is a detachable, metal piece known as the boot. This enables the boot to be easily replaced when it becomes broken or worn down instead of having to completely change the shank.
The dozer ripper is used to break up rock, concrete, earth or other solid objects and material into smaller pieces which are then easier for the bulldozer to move using the dozer blade. This allows for quicker project completion.
In farming, a dozer ripper is used to break up rock and very dense earth to allow for ploughing and planting. Locations across Italy and New Zealand rely on dozer rippers to access nutrient-rich ancient lava flows that wouldn’t be farmable otherwise due to their dense nature. The top layer of lava rock is loosened up with the ripper to create farmable land.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
For example, the original bulldozer was too large for work in small areas, such as mines. These limitations led to more compact bulldozer designs and models. Very small, light bulldozers are sometimes referred to as calfdozers.
A smaller and lighter version of the bulldozer is used in snow applications such as ski hills and prepping winter sports locations.
The loader tractor is another popular adaptation. This was created by replacing the dozer blade with a large bucket, raised and lowered with the use of hydraulic arms. This adapted bulldoze is now often referred to as a Drott, trackscavator or track loader and frequently used in loading rocks, gravel and earth into dump trucks.
A less common bulldozer attachment is a stumpbuster. A stump buster is attached at the back of the bulldozer. It consists of a single spike that protrudes horizontally to split tree stumps up for easier removal. These are used primarily by bulldozers working on land clearing projects. In those circumstances, the bulldozer also has a brush-rake blade.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Large bulldozers are mainly used to flatten terrain for construction preparation. Construction aspects are mainly completed by loader tractors and small bulldozer models.
Origins
In 1923, the first bulldozer was designed when farmer James Cummings joined forces with a draftsman named J. Earl McLeod. The initial design created was the dozer blade made to plow fields by attaching to an existing tractor. They built the original bulldozer and it can be viewed in Kansas’ city park, Morrowville. The team filed for a US patent on their bulldozer attachment later that year and a patent was granted in January 1925. During this time, tractors commonly ran on a track system. In fact, it was this earlier version of the tractor, with its superior maneuverability, that contributed to the creation of the armoured tank during World War I.
A variety of custom and homemade attachments started to appear in 1929 on tracked and wheeled tractors. During the mid-‘30s, the bulldozer attachment started to gain popularity. Prior to 1940, hydraulic cylinders were added and by the ‘50s, bulldozer popularity began to grow with the term bulldozer referring to the whole machine.
With their growth in popularity for large and small construction jobs, bulldozers became larger and stronger. Eventually, many companies such as John Deere and Caterpillar began to manufactured large tracked and wheeled bulldozers. With time, manual transmission was replaced with automatic transmission and cable winch systems were replaced with hydraulic cylinders and electric motors. These technological upgrades created more effective and accurate control systems. Nowadays, GPS technology has been added to improve grade control and enhance bulldozing tasks.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
